Medium Math · Advanced Math · Nonlinear functions · MCQ

y equals, 4 times, open parenthesis, 2 to the x power, close parenthesis

Which of the following is the graph in the xy-plane of the given equation?

  1. A

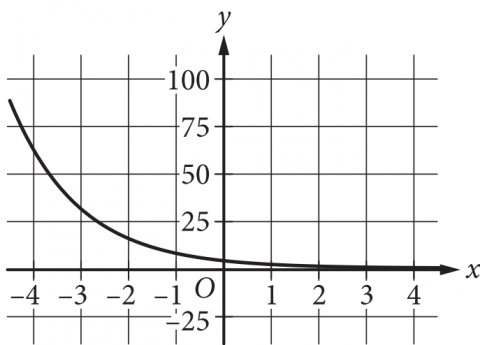

    The answer choice presents the graph of a curve in the x y plane, with the origin labeled O. The numbers negative 4 through 4, in increments of 1, are indicated on the x axis. The numbers negative 25 through 100, in increments of 25, are indicated on the y axis. The curve begins to the left of the y axis, high above the x-axis. As it moves rightward it goes downward, at first steeply, then more and more slowly as it gets closer and closer to the x axis. Eventually it goes downward toward the x axis so slowly it is almost horizontal. The curve passes through the point with coordinates negative 2 comma 32, and the point with coordinates negative 1 comma 8, and crosses the y-axis a little above the origin. It ends to the right of the y-axis, just above the x-axis.

  2. B

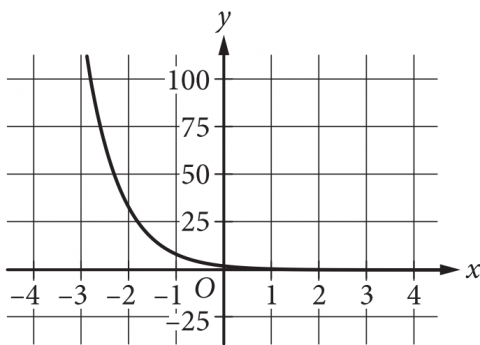

    The answer choice presents the graph of a curve in the x y plane, with the origin labeled O. The numbers negative 4 through 4, in increments of 1, are indicated on the x axis. The numbers negative 25 through 100, in increments of 25, are indicated on the y axis. The curve begins to the left of the y axis, high above the x axis. As it moves rightward it goes downward, at first steeply, then more and more slowly as it gets closer and closer to the x axis. Eventually it goes downward toward the x axis so slowly it is almost horizontal. It ends to the right of the y axis, just above the x axis. The curve passes through the point with coordinates negative 3 comma 32, the point with coordinates negative 2 comma 16, and the point with coordinates negative 1 comma 8. It crosses the y-axis a little above the origin and ends to the right of the y-axis, just above the x-axis.

  3. C

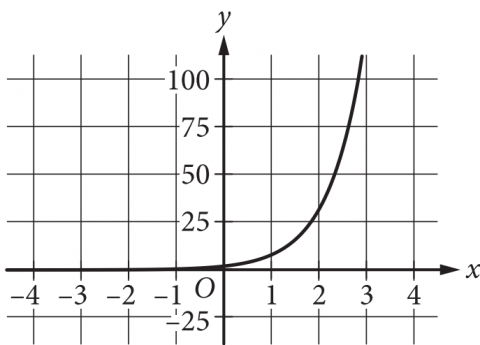

    The answer choice presents the graph of a curve in the x y plane, with the origin labeled O. The numbers negative 4 through 4, in increments of 1, are indicated on the x axis. The numbers negative 25 through 100, in increments of 25, are indicated on the y axis. The curve begins to the left of the y axis, just above the x axis. As it moves rightward, it goes upward, at first so slowly it is almost horizontal, then more and more quickly. The curve crosses the y-axis a little above the origin, and passes through the point with coordinates 1 comma 8 and the point with coordinates 2 comma 32. It ends to the right of the y-axis, high above the x-axis.

  4. D

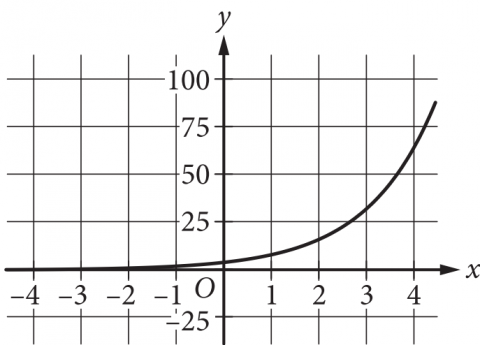

    The answer choice presents the graph of a curve in the x y plane, with the origin labeled O. The numbers negative 4 through 4, in increments of 1, are indicated on the x axis. The numbers negative 25 through 100, in increments of 25, are indicated on the y axis. The curve begins to the left of the y axis, just above the x axis. As it moves rightward, it goes upward, at first so slowly it is almost horizontal, then more and more quickly. It ends to the right of the y axis, high above the x axis. The curve crosses the y axis a little above the origin, and it passes through the point with coordinates 1 comma 8, the point with coordinates 2 comma 16, and the point with coordinates 3 comma 32. It ends to the right of the y-axis, high above the x-axis.
