Hard Math · Geometry and Trigonometry · Lines, angles, and triangles · SPR

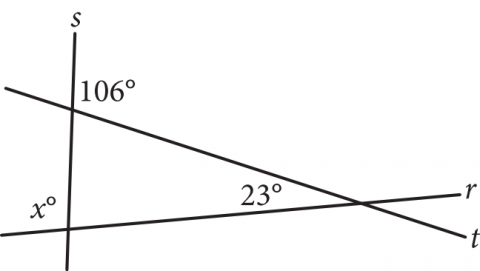

Intersecting lines r, s, and t are shown below.

The figure presents three intersecting lines, labeled r, s, and t. Line s begins near the top of the figure and extends downward and slightly to the left. Line t begins to the left of line s, and extends downward and to the right, intersecting line s. Line r begins below line t and to the left of line s. Line r extends upward and to the right, first intersecting line s and then line t. The following angle measures are indicated: the angle formed to the right of line s and above line t measures 106 degrees, and the angle formed to the left of line s and above line r measures x degrees. The angle formed below line t and above line r measures 23 degrees.

What is the value of x ?

Source: SAT practice questions © College Board, from the official SAT Suite Question Bank. Retrieved via the community dump at github.com/mdn522/sat-question-bank. View the official question bank →
